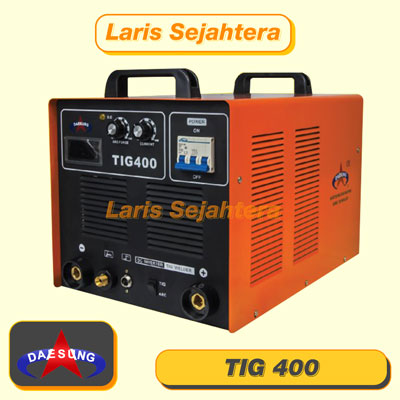

Jual Mesin Las Daesung TIG 400 Bergaransi Resmi 1 Tahun. Jika Anda Berminat Silakan Hubungi Laris Sejahtera Tel. 021-2268-3317 – Hp. 0819-3236-9677. Harga Murah!
| Model | TIG 400 |
| Input power voltage (V) | 380 |
| Frequency (Hz) | 50/60 |
| Rated input capacitance (kVA) | 14,24657534 |
| Rated input current (A) | 29,42840973 |
| TIG rated output voltage (V) | 26 |
| TIG output current range (A) | 10-400 |
| MMA rated output voltage (V) | 36 |
| MMA output current range (A) | 10-400 |
| Arc force current range (A) | 10-100 |
| Pre-flow time (s) | – |
| Post-flow time (s) | – |
| Pulse frequency (Hz) | – |
| Peak time / Pulse Width (%) | – |
| Base Amp (A) | – |
| Up-slope current adjustment time (s) | – |
| Down-slope current adjustment time (s) | – |
| Clean width (%) | – |
| AC Balance | – |
| Remote control | No |
| Arc starting | HF |
| Duty cycle 100% (A) | 400 |
| Duty cycle 60% (A) | 310 |
| Wattage (W) | 2225-10000 |
| No-load voltage (V) | 66 |
| No-load loss (W) | 100 |
| Efficiency (%) | 85 |
| Power factor (cosØ) | 0,93 |
| Insulation class | F |
| Protection class | IP21S |
| Electrode (mm) | 2.0-4.0 |
| Weight (kg) | 28 |
| Size (L x W x H) (mm) |
Accessories :
Tig Torch WP-18-12
Ground Clamp
Garansi Service 1 Tahun & Sparepart 3 Bulan.
