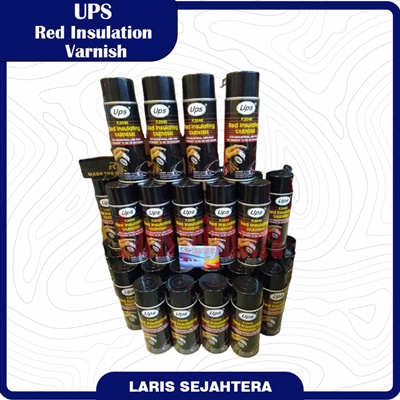

Jual Ups F2040 Red insulating Varnish Berkualitas

Jual Ups F2040 Red insulating Varnish Berkualitas. Jika Anda Berminat Silakan Hubungi Laris Sejahtera Tel. 021-2268-3317 – Hp. 0819-3236-9677. Harga Murah!











APPLICATION :

Motor windings.

Terminals.

Bus bars commutator ends.

Stator coils.

Red formulation in an excellent insulator of PC boards.

Since it allows visualization of circuit parts.

ADVANTAGES :

Provides a conformal polyurethane coating that insulates electrical and electronic and equipment and seals out water and moisture.

Available in clear or red formulations.

Dries quickly to a hard, durable, flexible and non-conductive film.

High dielectric strength, high surface and volume reistively make ideal for electrical / electronics applications.

Effective temperature range of – 90° F to 250° F.

Abrasion – resistant insulator for electrical and electronic equipment and components.

Authorized by USDA for use in federally inspected meat and poultry plants.

PHYSICAL & CHEMICAL PROPERTIES :

Film Type ……………………………………………..Red, dry
Drying Time…………………………………………..15 – 30 minutes
Coverage……………………………………………….800 sq.ft @ 1.0 mil
Corrosion resistance……………………………..N/A
Flash Point…………………………………………….120° F TOC (bulk)
Key Specs………………………………………………USDA, NSN 5970-01-117-5738
Dielectric Strength…………………………………2100 V/MIL( Wet ) / 3200 V / MIL (Dry)

12 AV OZ 344 grm
1tin : 1 ltr
1 gallon : 5 ltr
1 pail : 20 ltr
